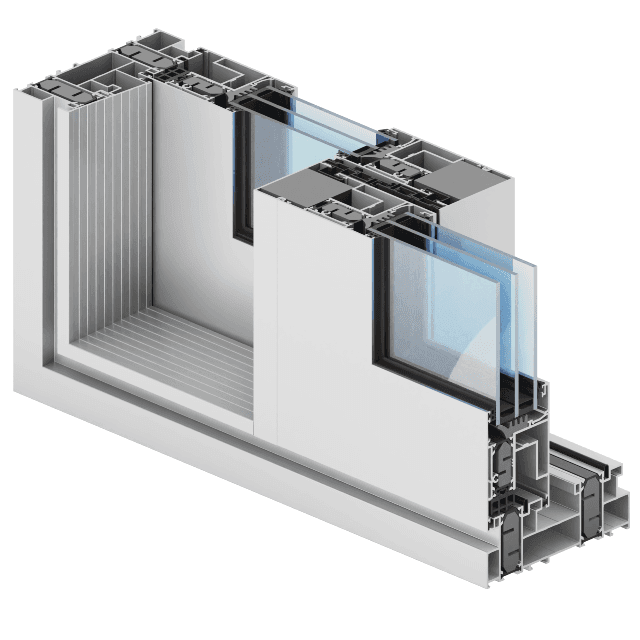

HS Ultraglide
- A system offering enhanced thermal efficiency, utilized for creating sliding and lift-sliding constructions
- The UG sliding structures are designed for residential buildings, particularly private and public edifices,
- The system is tailored to meet the latest standards in terms of thermal performance, aesthetics, and safety; available system options: UG low-threshold variant, UG – 90° angular solution,
- With its specifications, the Ultraglide system enables the design of structures with exceptionally large sliding panels; maximum dimensions achievable in the system: panel height – Hs = 12959⁄64in; panel width – Bs = 12563⁄64in,
- The Ultraglide system allows the creation of spacious yet stable sliding windows and doors; maximum panel weights: 551lb – for sliding option; 881lb – for lift-sliding option. Frame design incorporates 3, 5, and 7 chamber profiles,
- Possible configurations with two, three, and four components based on the two-rail system,
- Profiles suitable for accommodating various manually operated hardware available in the market, as well as automated devices diverse options for infills, including double and triple glazed units,
- The system is adapted to comply with the latest standards for thermal performance; it features a 055⁄64in/17⁄64in wide separator enhanced with glass fiber, thermal inserts, and under-glass inserts to improve overall thermal efficiency
- Available options: UG, UGi, and UGi+; ideal for designing expansive glazing, providing ample natural light, and facilitating interior design.
- Ensures stability, functionality, and lightweight structure with the possibility to incorporate the Flyscreen system (Flyscreen – fly screens are practical and highly functional protection against insects).
- A wide range of colors available including RAL palette (Qualicoat 1518), textured finishes, Aliplast Wood Colour Effect (wood-like colors), Loft View – colors mimicking stone surfaces (Qualideco PL-0001), anodized colors (Qualanod 1808), and bi-color options.

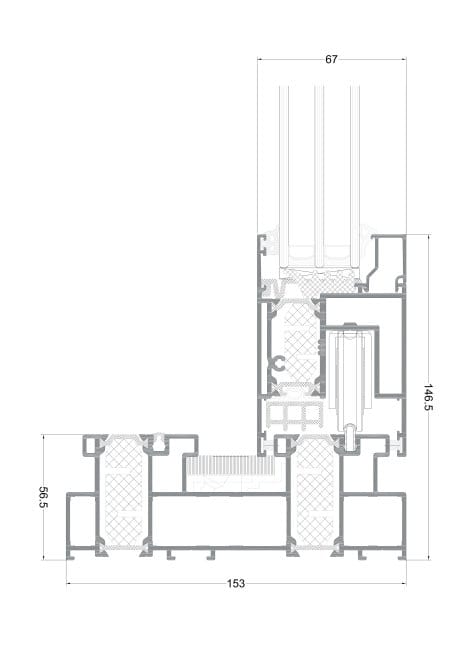

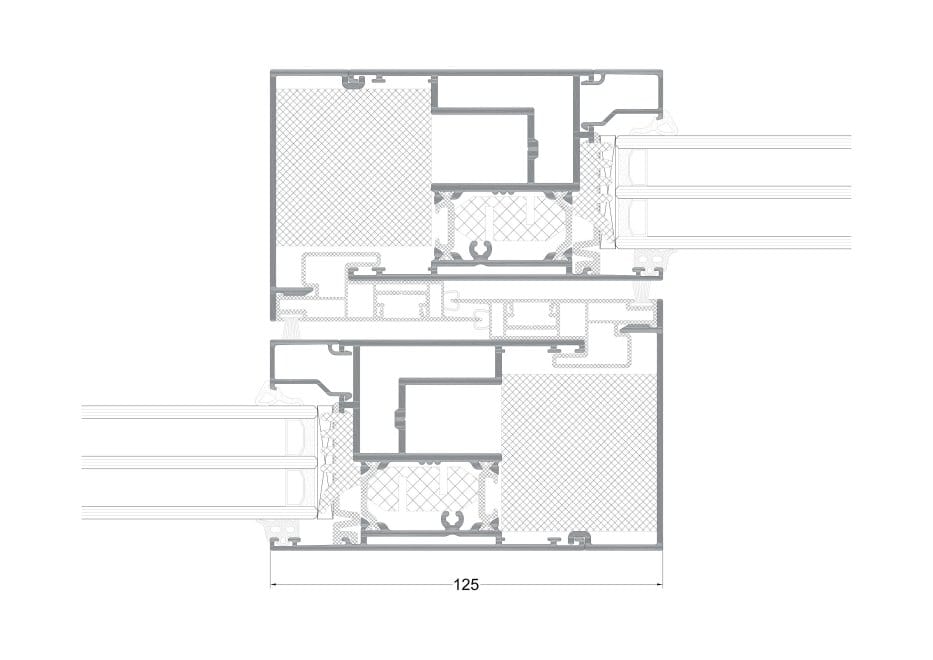

Cross Section
TECHNICAL SPECIFICATION
| SYSTEM | MATERIAL | DEPTH OF FRAME | DEPTH OF LEAF | GLAZING RANGE | ACOUSTIC | WEIGHT OF LEAF | TYPE OF DOORS |
| UG | aluminium/thermal insulation | 61⁄32in-913⁄32in | 241⁄64in | 035⁄64in-23⁄64in | 43 (-2,-6) dB | to 551lb sliding option / to 881lb lift sliding option | sliding, lift-sliding |
PERFORMANCE
| SYSTEM | THERMAL INSULATION UF* | AIR PERMEABILITY | WINDLOAD RESISTANCE | WATERTIGHTNESS |
| UG | Uf from 1,45 W/m2K | Class 4; EN 12207 | Class C4 (1600 Pa); EN 12210 | 9A (600 Pa); EN 12208 |

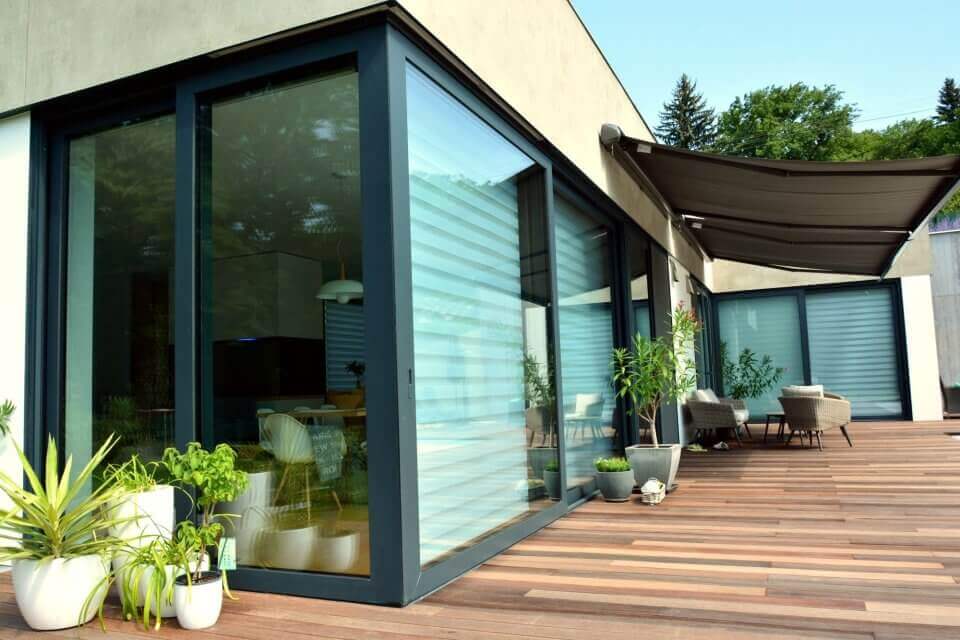

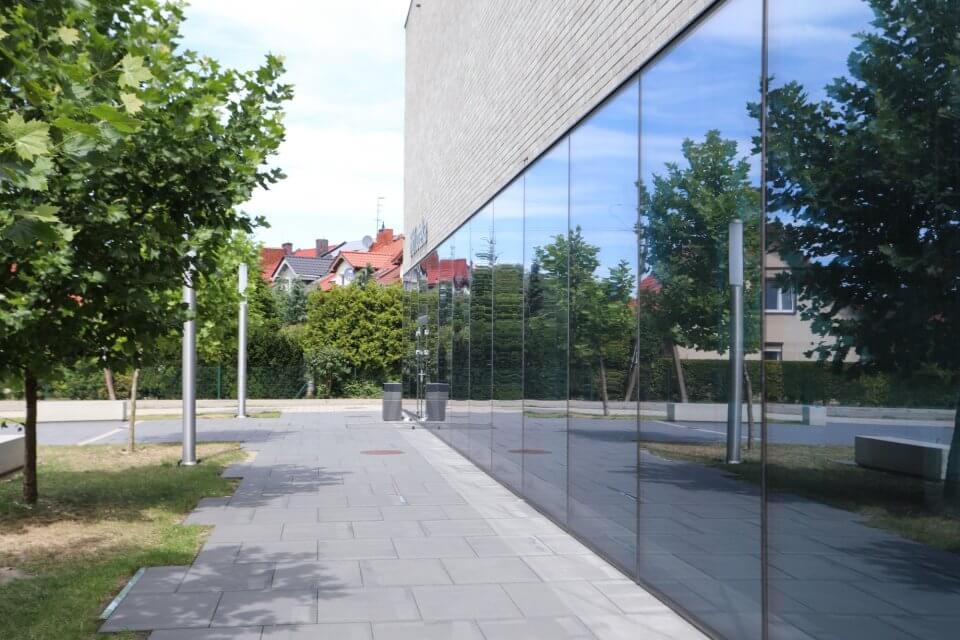

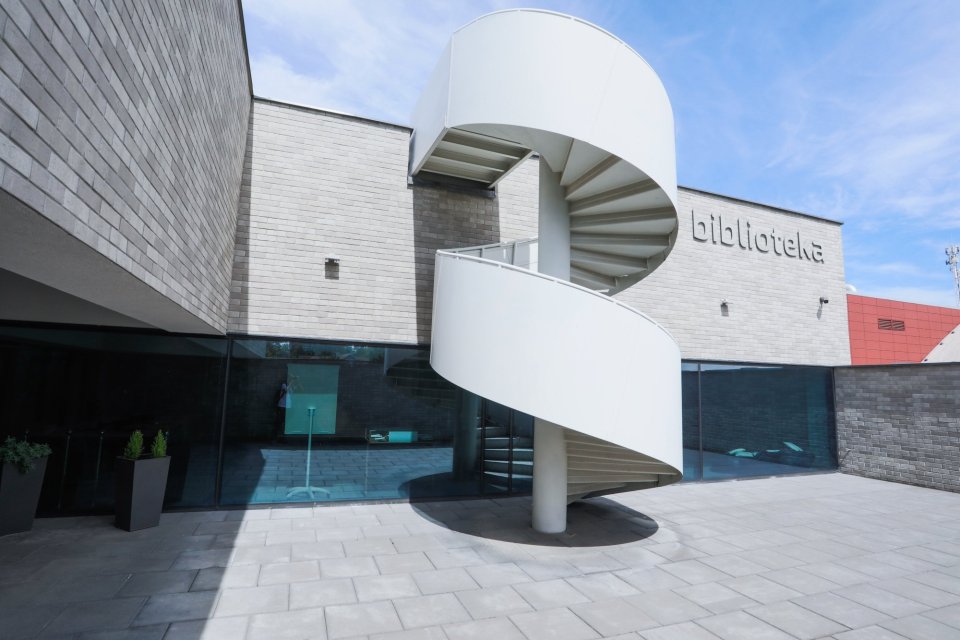

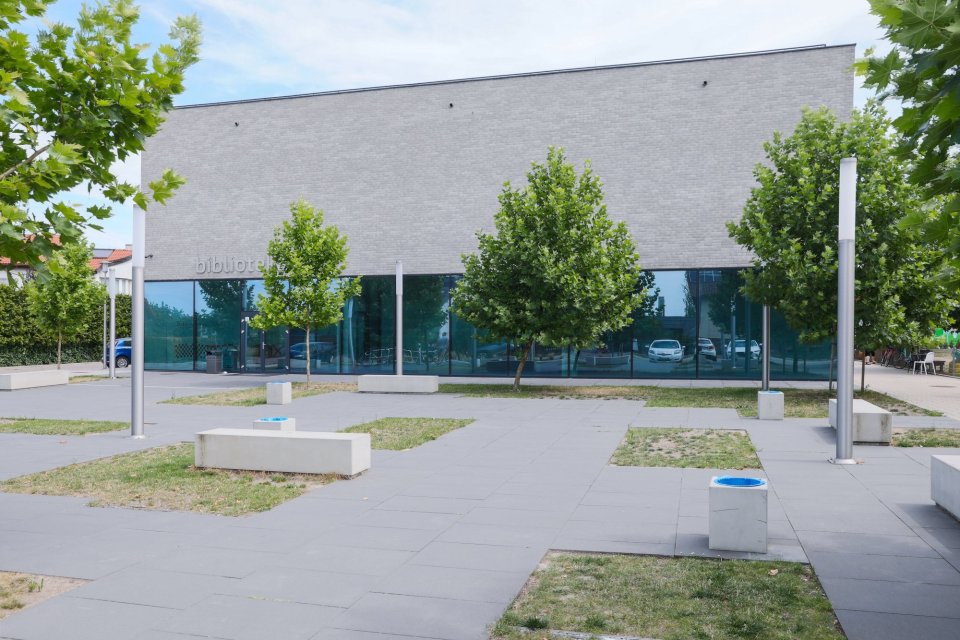

Visualisations
